Biomaterial

Rtec Instruments provides several ASTM, DIN, and ISO standards and customized solutions for the biomaterials industry. Analyze coatings, teeth implants, contact lenses, stents, prostheses, implants, bovine serum, and more.

Home > Solutions > Biomaterials

Biomaterial Solutions We Offer

With the biomaterial industry rapidly changing, Rtec Instruments provides the analytical and measurement instruments to drive biomaterial quality control and research.

scratch data images by Rtec Instruments Scratch Tester

Scratch Adhesion, Resistance

To ensure good biocompatibility and long lifetime, there is a great interest in knowing the adhesion and scratch resistance of many types of functional surface coatings applied to biomaterials (stents, prosthetics, joints, valves, connectors).

Study scratch adhesion, scratch hardness, scratch resistance at nano, micro, and macro scale. An In-line integrated 3D profilometer creates 3D stitched images to comprehensively and conclusively characterize the coating failures.

Indentation and Scratch Tester, SMT-5000

Multi Function Tribometer, MFT-5000

Fretting

Novel materials and coatings for replacing and repairing human body parts, various medical devices, and other standard medical equipment are growing in the biomaterial industry. To study degradation due to fretting, wear, and corrosion, Rtec Instruments provides unequaled specifications for fretting testers. Testers include controlled stroke from 5 microns to several mm and up to 500 Hz frequency across controlled environmental conditions (temperature and liquids).

Fretting FFT Series

Multi Function Tribometer, MFT-5000

3D view of fretting tribology of a surface by Rtec Instruments Optical Profilometer

Corrosion

Medical devices in humans use metallic biomaterials and coatings more than any other family of materials. The corrosion resistance of materials affects their functionality, durability, and is a prime factor governing biocompatibility.

Study the effect of corrosion of biomaterials, coatings, and component durability, adhesion, hardness, fretting, wear resistance, friction, and more using several available testers.

Tribocorrosion on MFT-5000

Indentation and Scratch Adhesion Tester, SMT-5000

Fretting Corrosion on FFT Series

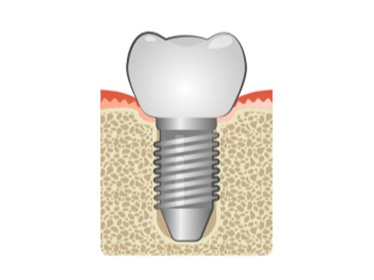

Dental

Rtec Instruments provides several biomaterial quality control and research solutions for the dental industry. Study life of dental materials, implant torque strength, wear between two tooth surfaces, effect of toothbrush on dental materials, and image surface change vs time. Test one or multiple samples at the same time. The profilometer provides tooth surface imaging with ease.

Multi Function Tribometer, MFT-5000

Drilling Tester

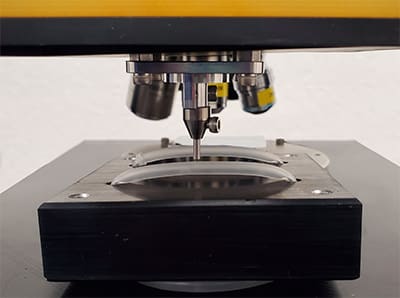

Catheters

Catheters require rigorous testing to ensure lubricity performance, as it is a critical factor affecting insertion force, push force/ navigation force, and removal force.

Rtec-Instruments’ modular Multi Function Tribometer with patented capacitive force sensors provides multiple test setups to mimic clinical use while tracking catheter delivery through vitro fixtures. Its high-resolution 3D profilometer and force characterization produce friction mapping to analyze the overall performance of the catheter.

Multi Function Tribometer, MFT-5000

Adhesion

Rtec Instruments Adhesion Tester is a turnkey solution to measure pull-up adhesion force, work of adhesion, and shear adhesion of materials. Equipped with ultra-sensitive capacitance load cells, this tester provides µN level resolution with forces up to 5 N. Integrated with high resolution inverted camera allows researchers to measure the Contact Area vs. Normal Force. This is extremely useful in measuring the adhesion of soft materials, biomimetics, and hydrogels.

Adhesion Tester

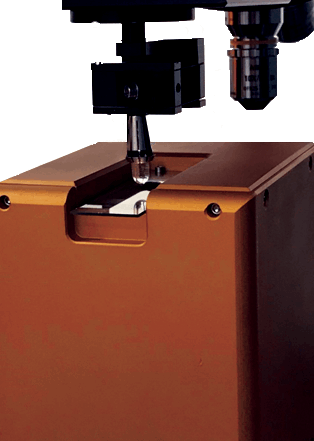

Surface adhesion from contact area vs force test module

Polymers

Advances in the production of well-defined and optimized polymers play a central role of polymers in functional biomaterials. Commodity synthetic polymers are widely used as contact lenses, intraocular lens materials, microspheres as drug delivery reservoirs, and polymer scaffolds for tissue engineering.

We offer a wide range of biomaterial industry solutions for bio-polymers. Test surface and finish components by evaluating friction, durability, roughness, and topographical data, multi-layer film thickness, and scratch resistance.

Multi Function Tribometer, MFT-5000

3D Optical Profilometers, UP Series

Indentation and Scratch Adhesion Tester, SMT-5000

Biomaterial 3D Imaging

Combine 4 imaging modes in one head. Only one mouse click to alternate between the different imaging modes. Image any surface with ease – transparent, flat, dark, flat, curved, and more.

3D Optical Profilometer, UP Series

nano tribology of thin films using tribometer

Friction and Wear

Understanding biomaterial friction is of increasing importance due to the various new applications of industries, such as healthcare, biomedical, food, personal care, and the incorporation of soft materials into technology.

Perform tribology, friction, and wear studies under a wide test load range, and motion. All while testing under a variety of controlled environmental conditions, such as liquid, temperature, and corrosion. Test coatings, materials, and components (contact lenses, optical glasses, tooth, hip joint, stents, sutures, implants, tissue, skin, valves, connectors) with ease. Combine the data together with our in-line integrated 3D profilometer.

Multi Function Tribometer, MFT-5000
