Detailed Module Information
Main Features:
- Downforce 0 to 200N (platform dependen – up to 3000N)
- Speeds 6 to -6 m/s (higher speeds available)
- Electrified – DC, AC, and Voltage
- Capacitive force sensors for friction sensitivity
- Temperatures up to 180 °C
- Multi-function platform allows for more tests on the same platform
What is a traction test?
The Traction Machine is a widely used tribological test in which the rheological and friction properties of lubricants are evaluated under controlled conditions. During a traction test, two rotating surfaces (often ball and disc) are brought into contact under a controlled load. These surfaces are then moved relative to each other with increasing sliding/rolling ratios. The test measures the coefficient of traction and, if necessary, also performs a Stribeck curve analysis at various loads, sliding speeds, and environmental conditions. Typically, lubricant film thicknesses or the structure of tribofilms are measured, but pressure-viscosity coefficients of fluids are also measured.
Rtec Instruments Solution—The next-generation traction machine was designed with versatility in mind. It uses two independently controlled closed-loop high-power servo drives to provide a wide sliding-to-rolling ratio. Synchronous or asynchronous operation at the contact surfaces is possible. Depending on the model selected, normal forces of up to 100/200/3000 N can be applied for any conceivable or application-specific traction and Stribeck curve. Several environmental chambers are available for the mini traction testing machine, ranging from cryogenic temperatures to 180°C.
Main Features:
- Downforce 0 to 200N (platform dependent)
- Speeds 6 to -6 m/s (higher speeds available)
- Electrified – DC, AC, and Voltage
- Capacitive force sensors for friction sensitivity
- Temperatures up to 180 °C
- Multi-function platform allows for more tests on the same platform
What is a traction test?
The Traction Machine is a widely used tribological test that evaluates the friction and wear properties of lubricants under controlled conditions. During a traction test, two surfaces (often ball and disc) are brought into contact under a controlled load. These surfaces are then moved relative to each other to create various sliding rolling ratio speeds. The test measures the coefficient of traction and performs Stribeck curve analysis at various loads and environmental conditions.
Rtec Instruments Solution—The next-generation traction machine is designed with versatility in mind. It uses two independently controlled closed-loop high-power servo drives to provide a wide sliding-to-rolling ratio. The ASTM, DIN, and ISO-compliant testing module can apply a downforce up to 100/200/3000 N, depending on the model selected. The traction test machine comes with several environmental chambers from low to 180°C temperatures to choose from.
Need help or have a question?
Watch The Mini Traction Machine in Action on MFT-5000
Electrify Your Traction Testing
Test the lubricants, thermal fluid, and more under various AC, DC, or voltage modes during Stribeck and traction tests at various temperature conditions.

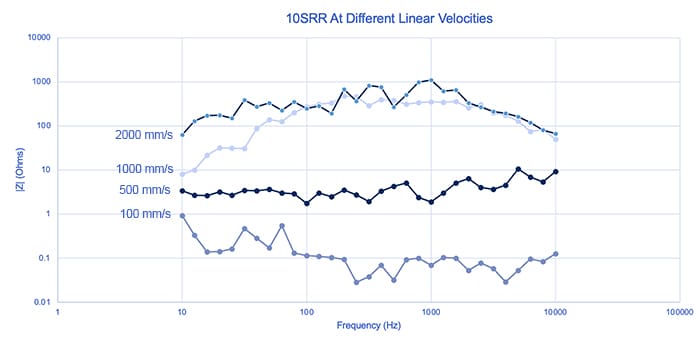

The electrified model allows simple contact resistance tests or complex impedance studies to optimize the tribology performance and durability of electrified systems.
Test conditions – 0 to 60V(30×2), 0 to 3A. Voltage output with 0.06% accuracy and current output with 0.2% accuracy.
Choice Of Platform For Traction Test
Rtec-Instruments traction testing modules can be installed on three platforms: the floor-standing MFT-5000 and the benchtop MFT-2000 series. Each platform is equipped with specialized features tailored to the needs of quality control and tribology research and development.
MFT-2000
- Traction Test up to 100N
- Rotary pin, ball on disk included
- Automated XY linear drive included
- Additional interchangeable drives are available

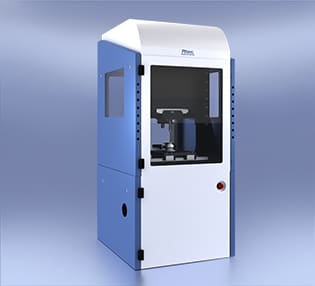

MFT-5000
- Traction test up to 200N, 3000N
- Rotary pin, ball on disk included
- Automated XY linear drive included
- Electrified module
- Interchangeable drives (SRV, Block on Ring, 4 Ball, etc.) are available
Lubricant Analysis You Can Rely On

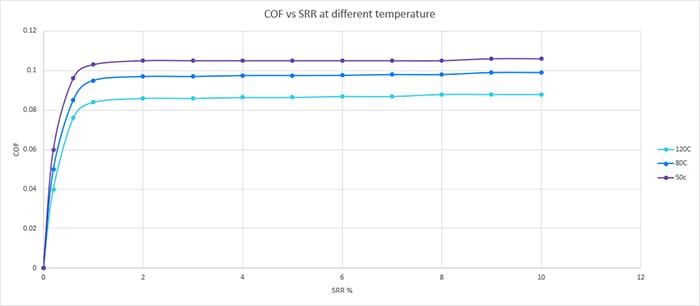

Investigating the friction properties and rheological behavior of lubricants, oil, and additives is essential for optimizing lubricant efficiency, reducing wear, and improving product durability. Quickly measure the force between the two contacts and record results automatically. The lubricant test profile includes the range of speeds, temperatures, and loads. Data is displayed in real-time, enabling in-depth analysis and comparison between samples.
The Mini Traction Machine Tribology Testing Solution
The MFT-5000 and MFT-2000 tribometers offer a wide range of tribology testing solutions applicable to a wide range of industries. Our collection, from mini traction to extreme traction testers, offers fast results for high-quality lubricant analysis and rheological performance evaluations. Simple and versatile, the traction machine is suitable for both quality assurance and R&D applications. In addition to the standard specifications, we are constantly updating our test specifications to meet the ever-increasing tribology demands. Please do not hesitate to contact us for the latest information on the test modules.
-
Lubricant Sustainability Research
-
EV lubricant optimization
-
Efficiency and fuel consumption of transmissions and combusion engines
-
Biomedical prosthetics, implants, and orthopedic devices
-
Turbine, wind turbines, and other renewable energy systems
-
Nanotechnology of advanced materials and coatings
-
Additive manufacturing
-
Cosmetic product development
Other Traction Products
Twin Roller Tribometer
Explore the Twinroller-3000 to delve deeper into its advanced technology and unrivaled traction capabilities.
Three Roller Pitting Tester
Discover the MPT-3000, designed to provide unparalleled micropitting precision and performance insights, revolutionizing your material testing experience.
Want to learn more?
Get in touch, and request a demo.
