HFRR Tester

High Frequency Reciprocating Rig

Next-generation HFRR lubricity tester with real-time force and stroke control, piezo sensors, and a wide temperature range. Designed with unparalleled precision, it ensures accurate and reliable fuel lubricity assessments—crucial for optimizing performance while meeting industry standards.

3
Home > Tribometers > HFRR Tester

HFRR Tester Overview

Main Features:

  • Real-time down force control
  • Oscillation frequency from 1 to 200 Hz
  • Oscillation amplitude from 10 µm to 2.8 mm
  • Friction force measurements with piezo load sensors
  • Temperature: Room to 150 °C (cooling and up to 400°C options available)
  • Load range up to 20 N (other load ranges available)

Evaluate lubricity, predict additive performance, and study friction and wear with our HFRR high-frequency reciprocating rig.

This next-generation Rtec Instruments HFRR testing machine features programmable force control (no dead weights), combined with piezo sensors to measure real-time friction. Its ease of use and flexure-based design make the tester highly reliable and repeatable.

Samples can be tested either from the field or for research purposes. The FFT-M provides a fully automated, computer-controlled test. Setup is easy, with calibration supported by standard oils and samples.

Each tester conforms to several ASTM standards, including the widely used ASTM D6079. In addition to standard testing, the wide stroke, frequency, and load ranges allow the development of new custom test methods—making it ideal for evaluating next-generation fuel additives.

Need help or have a question?

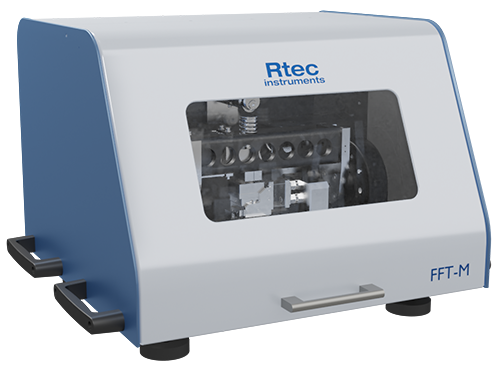

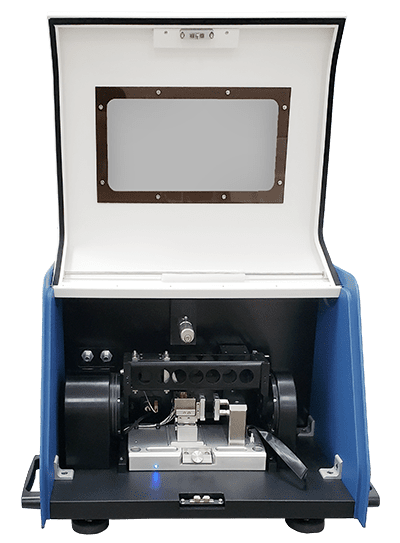

    High Frequency Reciprocating Rig HFRR bench top from Rtec Instruments model FFT-M for lubricity tests and more

    ASTM Tests and More

    Our lubricity tester, the FFT-M, performs friction and wear analysis on petroleum products.
    \
    IP 450/2000

    Diesel Fuel – Assessment of Lubricity Using the High Frequency Reciprocating Rig (HFRR).

    \
    ASTM D6079

    Standard test method for evaluating lubricity of diesel fuels by the high frequency reciprocating

    \
    ISO 12156-1

    Diesel Fuel – Assessment of Lubricity Using the High Frequency Reciprocating Rig (HFRR). Part 1 Test Method.

    \
    BS EN 590

    Automotive Fuels – Diesel – Requirements and Test Methods.

    \
    ASTM D7688

    Standard Test Method for Evaluating Lubricity of Diesel Fuels by the High-Frequency Reciprocating Rig (HFRR) by Visual Observation.

    \
    CEC F-06-A-96

    Measurement of Diesel Fuel Lubricity

    \
    JPI-5S-50-98

    Gas Oil – Testing Method For Lubricity.

    Choose Your Model

    Rtec offers two solution for your fuel lubricity evaluation. Run HFRR test on our Multi Function Tribometer MFT-5000 platform or on dedicated single function HFRR tester covered on this page.

    Typical Test Analysis

    • Evaluate lubricity of diesel and aviation fuels
    • 1mm 50 Hz, 200 g normal force
    • 6 mm diameter ball, 10 mm diameter x 3 mm thick disc

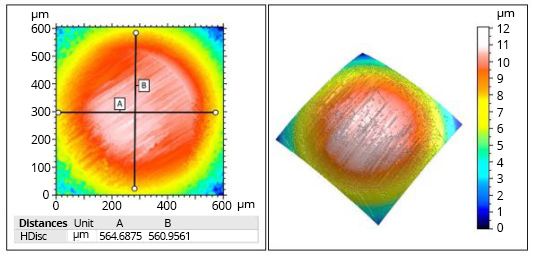

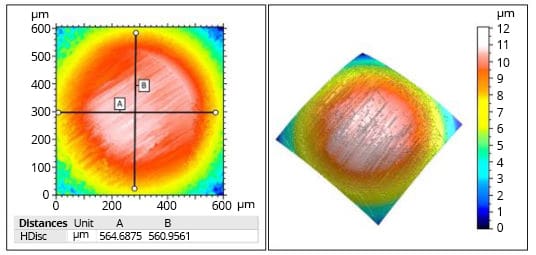

    Diesel fuel lubricity test ball wear mark using Rtec-Instruments' hfrr tester
    • Humidity control and monitoring
    • Temperature: 70°C
    • Wear scar and friction analyses
