HFRR Testing on MFT-5000 Overview

Main Features:

Servo controlled Load
In-line Friction, Acoustic Emission
Piezo Load Sensors
Environmental control

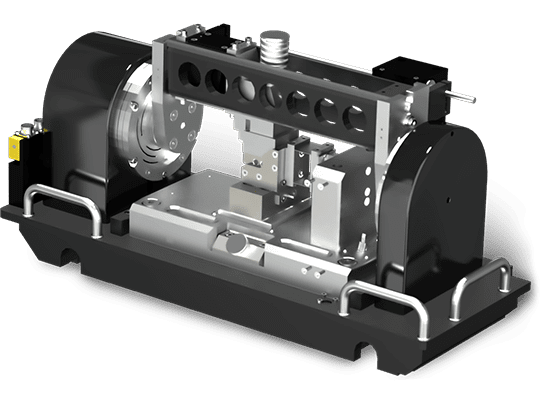

This next generation High Frequency Reciprocating Rig HFRR test module has real-time programmable force control, piezo sensors to measure real time friction, in-line total wear scar depth, wide temperature range, and voice coil actuators. The tester is mostly used to evaluate diesel fuel lubricity. The ease of use, programmable down force control, advanced sensors makes this tester highly reliable and repeatable.

Need help or have a question?

+1 408 708 9226

Email

Learn More About The MFT-5000 Platform

The MFT-5000 Tribometer

Learn more about the versatile MFT-5000 tribometer that provides friction, wear, and surface properties of various materials and coatings under a multitude of fluids, environments, and testing conditions.

Learn more about the MFT-5000 Tribometer

HFRR Module at a Glance:

Performance, Precision, Specifications

The High Frequency Reciprocating module HFRR is perfect for evaluating diesel fuel lubricity.

Specifications

Servo controlled Load Range up to 20 N
1 to 200 Hz, 10 µm to 2.8 mm
Ambient to 180/400°C Temperature Range
Standard ball 6 mm diameter
Standard disc 10 mm diameter x 3 mm thick disc
5 to 95% Humidity control and monitoring

The ball slides against a disk with a 1 mm stroke at a frequency of 50 Hz. Perfect for standard tests such as, ASTM D6079, D7688, CEC F-06-A-96, ISO 12156-1, IP450, BS-EC590
