Scratch Adhesion and Cohesion of Hard Coatings Introduction

Need help or have a question?

    Scratch Test of Hard Coatings Problematic

    9

    Given their functionalities, hard coatings need to be characterized both for their inherent strength and for their adhesion to the substrate on which they are deposited. For example, the corrosion resistance of a coating will decrease as soon as the cohesion of the coating is challenged by cracks at the surface. In the case of medical devices, the adhesion of wear-resistant coatings to implants need to guaranty that no coating “chip” can enter the bloodstream, threatening the health of the patient.

    9

    But adhesion is a difficult property to quantify as it is not a material property but the response of a coating / substrate system to an applied stress field. The scratch test is often used to induce stresses capable of fracturing the coating and delaminating it from its substrate hence yielding a better understanding of the coating adhesion. The ability to study both cohesion and adhesive failures with one test presents some advantages for both the researchers and the industrial engineers trying to improve their coating products.

    Scratch Testing Of Hard Coatings Methodology

    scratch testing principle
    Figure 1: Scratch Testing principle

    A scratch is created by dragging a diamond tip of known geometry a top the surface of the sample of interest as shown in Figure 1. As the tip is moved along the surface, the normal load applied to the tip is in- creased linearly, creating an increase in the severity of the contact. Following the scratch, images are taken of the entire scratch to analyze the different deformation and failures.

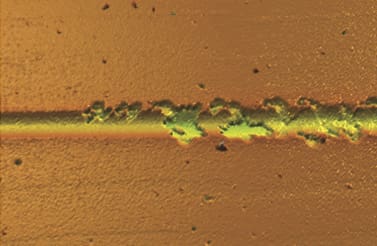

    coating failure image using confocal microscope on 3D scratch tester
    Figure 2: Confocal image of Scratch Failures

    The normal loads at which failures happen are called critical loads, LC .
    Critical loads are found using either imaging or a combination of imaging and signals (Acoustic emission for example).

    The critical load representing the failure by removal of the coating is a quantitative proxy for adhesion strength. Multiple signals can be recorded during the scratch test, allowing the user to correlate behaviors and specific measures.

    Scratch Adhesion and Cohesion Testing Conditions

    The Indentation and Scratch Tester (SMT-5000) was used to create scratches on three hard coatings: TiN and two DLC. The test parameters are summarized in Table 1.

    Load application profile linear increasing
    Scratch length 2 mm
    Initial load 0.1 N
    Final load 15 N
    Scratch speed 4 mm/min
    Stylus Rockwell 100mm radius
    sample in rtec instruments scratch tester instrument

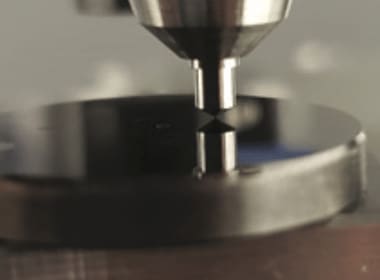

    Figure 3: Sample in the instrument

    Scratch Testing of Hard Coatings Results

    In all cases, as the normal force increases, the coatings fail first cohesively and then adhesively figure 4 shows the resulting penetration depth and coefficient of friction for 2 samples as the normal scratch load is increased up to 15N.

    scratch test data combining 3D profilometer and friction acoustic force sensors

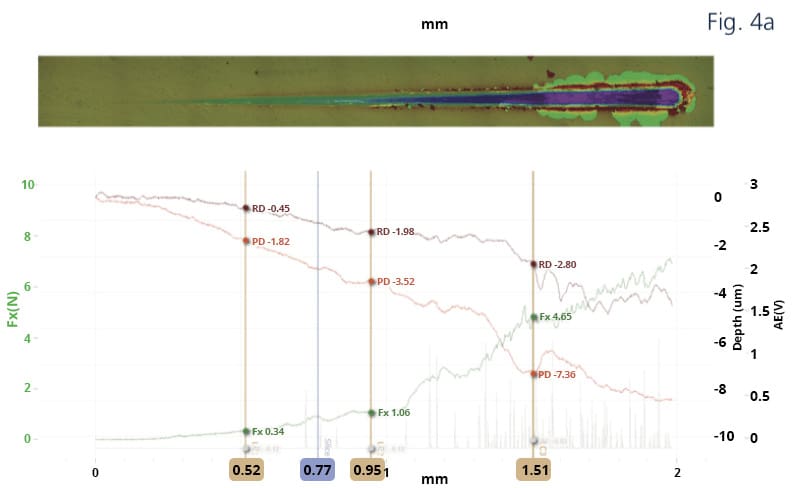

    Figure 4: Plots of Penetration depth, Scratch load, coefficient of friction, Acoustic emission along with Critical loads (vertical lines) for DLC 2 (left) and TiN (right) samples.

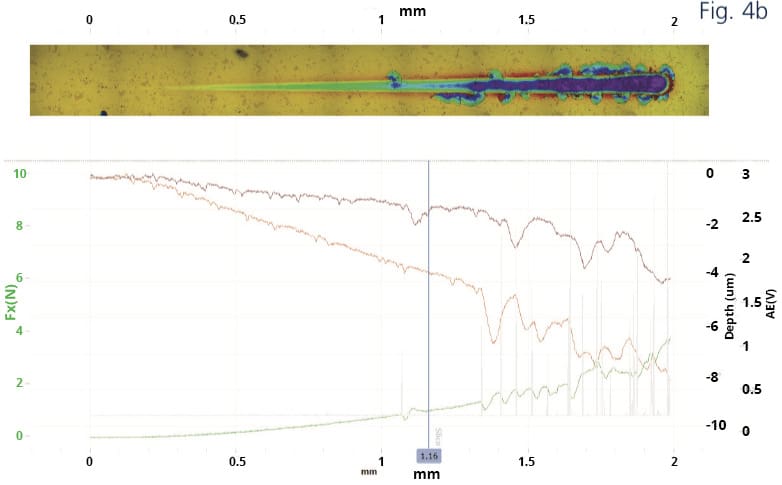

    scratch test data combining 3D profilometer and friction acoustic force sensors

    Figure 4a b: Plots of Penetration depth, Scratch load, coefficient of friction, Acoustic emission along with Critical loads (vertical lines)
    for DLC 2 (4a) and TIN (4b) samples

    In This Case Three Types of Failures Are Recorded:

    Lc1: First cracks in the coating

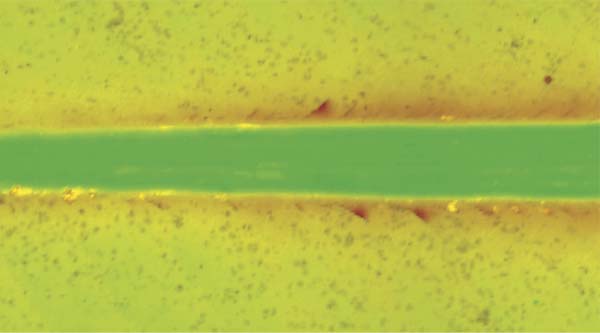

    First failure in DLC Coating scratch test LC1

    Figure 5: First failure in DLC 2 coating (Lc1)

    Lc2: First chipping of the coating

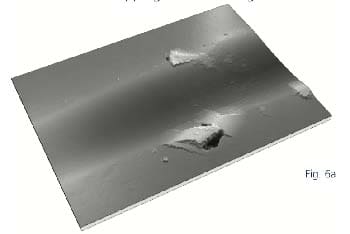

    Scratch adhesion test data for dlc coating

    Figure 6a: First chipping of DLC coating (Lc2; adhesive)

    Scratch adhesion test data for TiN coating

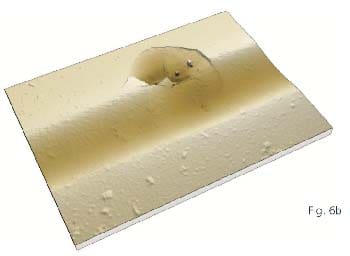

    Figure 6b: First chipping of TiN coating (Lc2, cohesive)

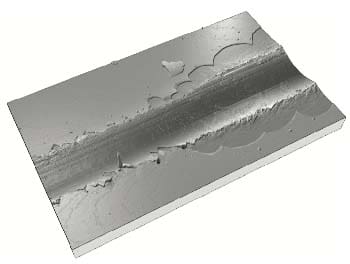

    Scratch adhesion test data for dlc coating

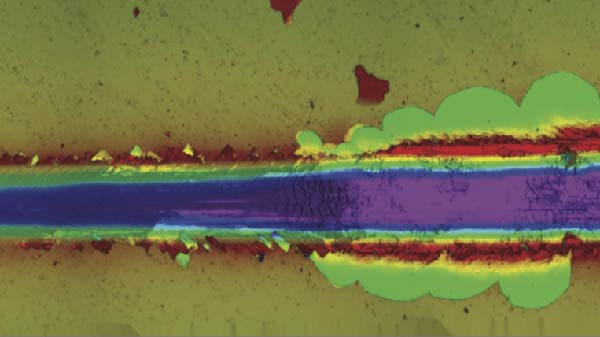

    Figure 7: Complete removal of DLC coating (Lc3)

    Lc3: Full removal of the coating
    Final failure in scratch test LC3

    Scratch Evaluation Test Summary and Conclusion

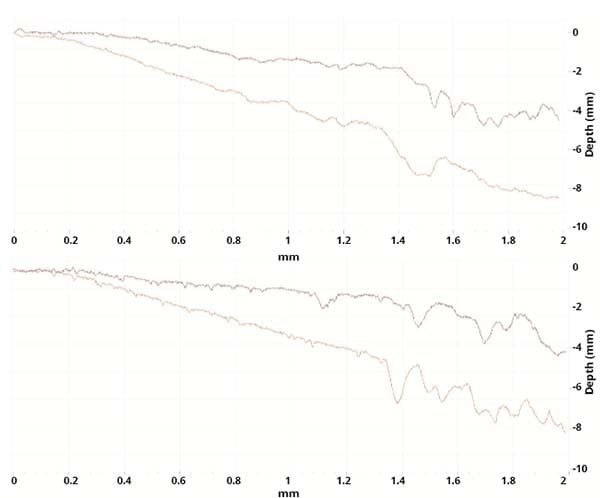

    Penetration and residual depths Scratch Data

    Figure 8: Penetration and residual depths for DLC 1 and TiN samples illustrate the recovery of the samples

    For the DLC sample, the change in coefficient of friction and acoustic emission are great indicators for the first failure (Lc1), while confocal image provides better details for Lc2 and Lc3.

    On the TiN sample, acoustic emission provides a good signal to detect the first 2 failures (Lc1 and Lc2) while optical observation in bright field provides necessary detection for Lc3.

    The comparison of the scratch penetration depth (under load) and the residual depth of the groove left in the sample provides valuable information on the recovery of the sample after the scratch deformation.

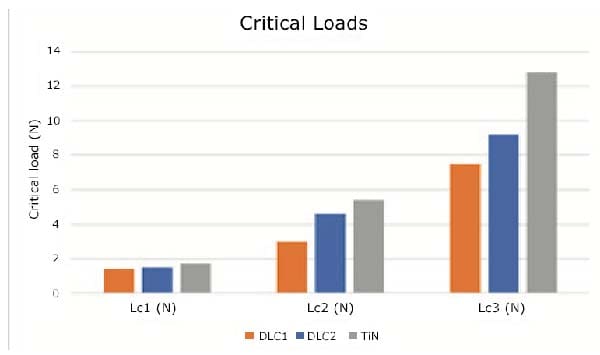

    This plot can be used to characterize the elastic recovery of the coating / substrate system. A summary of the critical loads provides a good comparison of the samples as shown in Figure 9.

    critical loads summary for dlc and TiN

    While Lc1 do not present significant difference between the samples, Lc2 and Lc3 show the superiority of TiN sample above the DLC samples. The adhesion of DLC 1 (Lc2) is the worst between all three samples.

    N
    Conclusions

    The scratch testing technique is a valuable tool to differentiate coating behaviors. The stresses generated during the scratch test provide information on the strength of the coating first, but also on the adhesion between coating and substrate as demonstrated above. The careful analysis of all signals recorded during a scratch test in addition to the robust imaging provided by confocal and bright field imaging allows for the most advanced understanding of coating / substrate systems behaviors. The 3D scratch tester, through Scratch testing of hard coatings, determined the scratch adhesion and cohesion of hard coatings.

    \
    International standards

    ASTM C 1624-05
    “Standard test method for adhesion strength and mechanical failure modes of ceramic coatings by quantitative single point scratch testing.”
