Main Features:
- Multiple test setups on same platform
- Real component testing and quick screening
- Several in-line sensors for advanced analysis
- In-line 3D profilometer to look at surface finish
Why Study ?

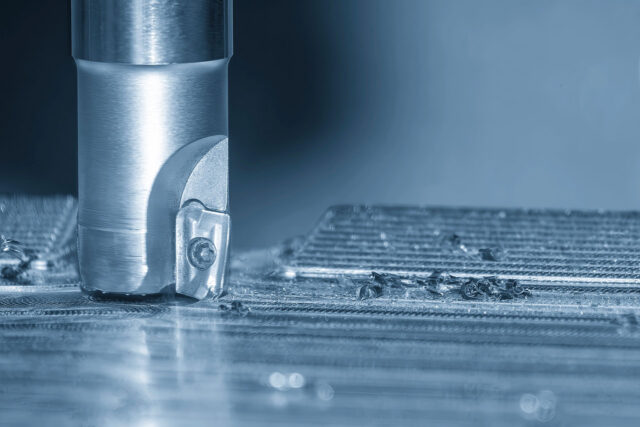

Machining is shaping materials into useful forms by removing the material. The cutting tool contacts with the work piece and either the tool, the work piece, or both while in motion. Cutting tool wear, final surface finish, cutting rate, metalworking fluids, additives, emulsifiers effect reliability and cost-effectiveness of the entire process. Study tribology and mechanical properties to improve machining and cutting tool process.
Test Setups On Same Tester
Simulate and improve the cutting tool process in a lab scale setup. Same real-life process parameters and finished component mounting generates useful data at a rapid pace. Interchangeable modules on same platform MFT-5000 presents a comprehensive cost effective solution.

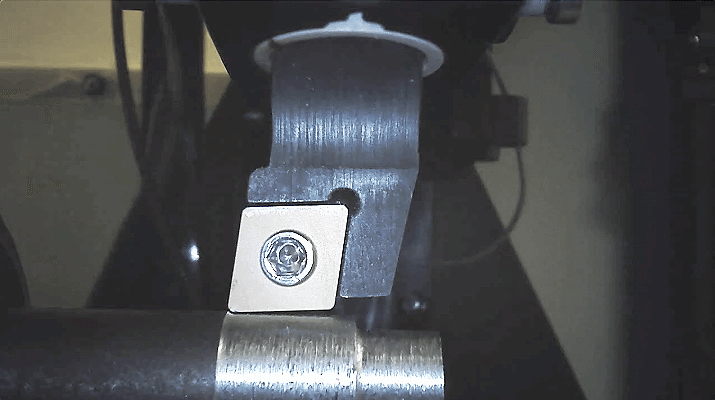

Cutting Tool Simulation
The cutting tool tribology module block on ring allows rotation of the shaft and while simultaneously moving it in Y direction. This provides simulation of a real machining operation. In-line torque measurement, controlled fluid flow rate, and temperature sensors. Integrated 3D profilometer measures surface finish and roughness of the cut surface.

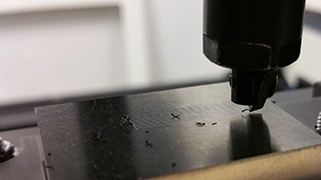

Scratch Adhesion and Hardness
The scratch and indentation module measures coating adhesion, hardness, scratch resistance, and more. Integrated 3D profilometer creates high resolution surface images to study surface damage.
Spiral Wear Test
The cutting tool tribometer module rotary drive rotates the sample while simultaneously moving in Y direction to create spiral wear marks. This allows the cutting tool to see a fresh sample surface all the time. In-line friction, wear, controlled fluid flow rate, and temperature sensors. Integrated 3D profilometer measures surface finish and roughness of the cut surface.
Tapping, Drilling, Cutting
The tribometer tapping torque module taps, drills, and cuts samples. Simultaneous upper rotation and lower XY stage allows simulation of real cnc operations. A wide range of taps can mount on the module. In-line torque, acoustic emission, controlled fluid flow rate, and temperature sensors.
