表面材質試験機

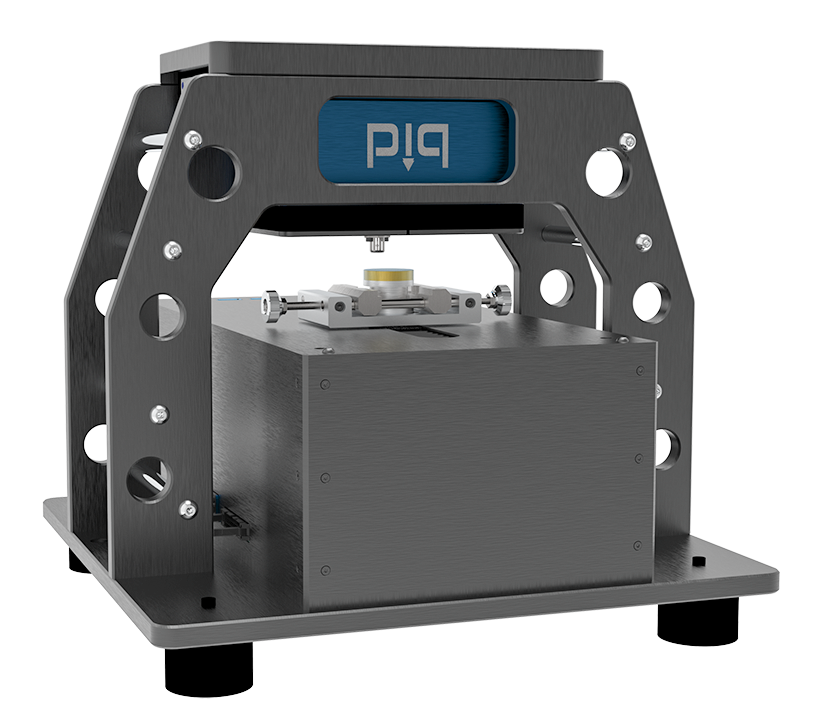

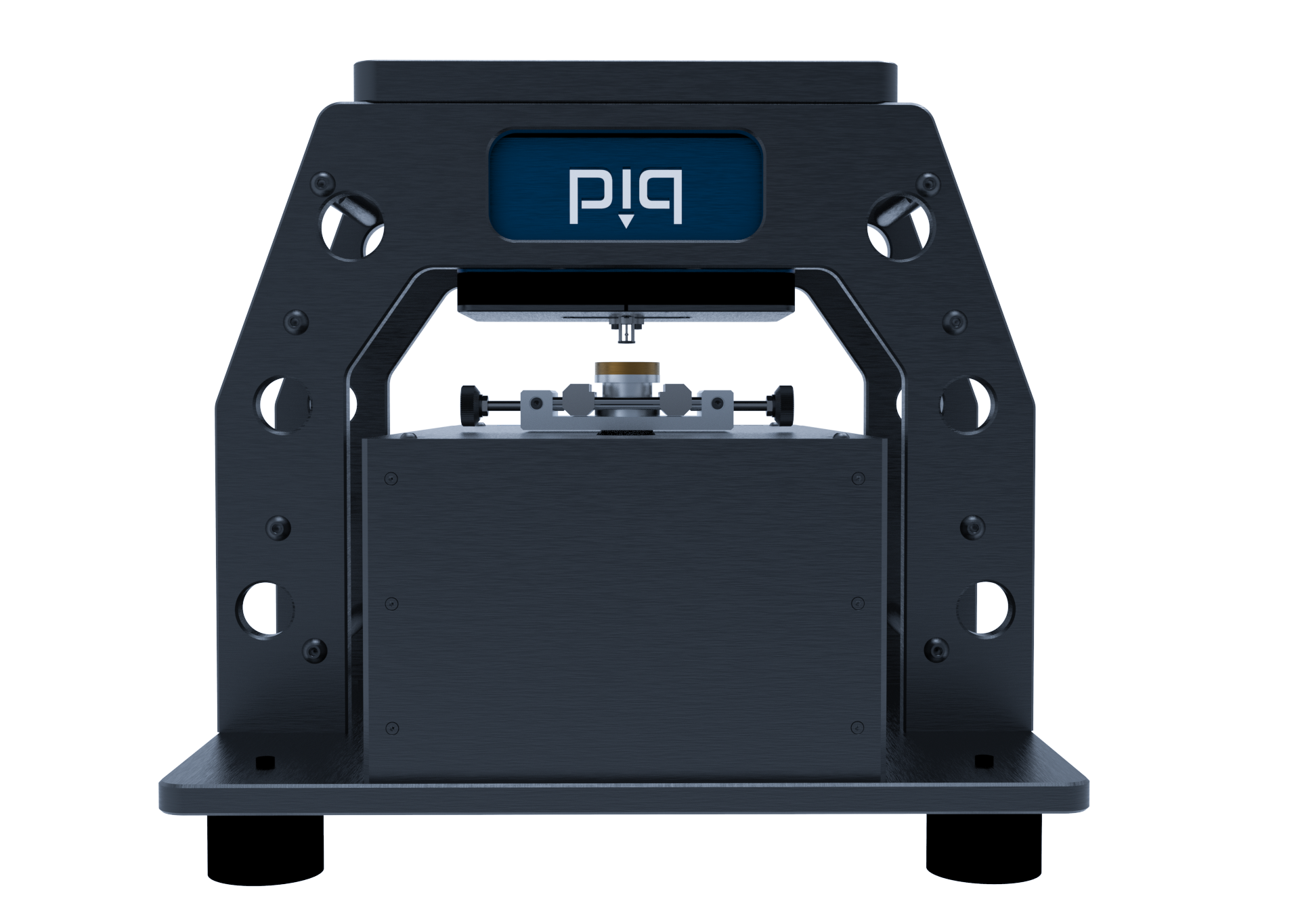

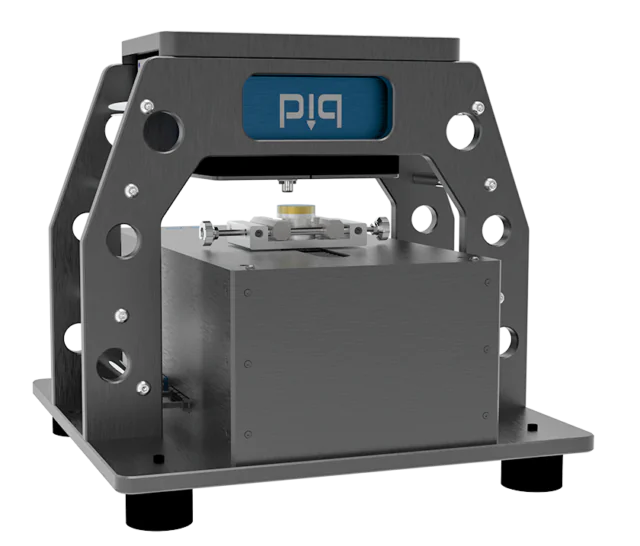

SMT-1000 The First Indenter Truly Designed for Teaching
SMT-1000教育用ナノインデンターは、学生や研究者に計装化圧子とナノスケールの機械的特性評価の基礎を紹介するために設計されています。高度なナノインデンテーション技術の信頼性と精度を備えたSMT-1000は、材料が小さなスケールの機械的負荷にどのように反応するかを学ぶための実用的なプラットフォームを提供します。このシステムでは、硬度や弾性率などの主要特性を測定しながら、インデンテーションプロセスやデータ解析を可視化することができます。直感的なインターフェースと堅牢な設計により、大学、教育研究室、トレーニング環境に最適です。SMT-1000は理論と実践の架け橋となり、学生は最新の材料特性評価技術を実際に体験することができます。
KEY FEATURES

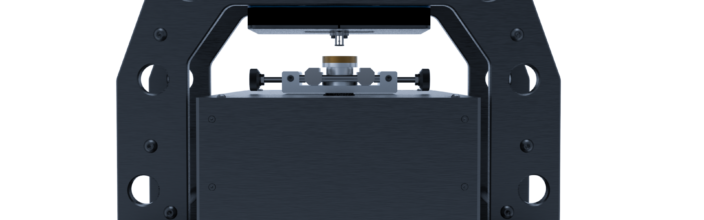

Hands-On Learning of Nanoindentation Principles
The SMT-1000 enables hands-on learning of instrumented indentation, allowing students to explore load–displacement curves, hardness, and elastic modulus. Through real experiments, users gain a clear understanding of how mechanical properties are measured and analyzed at micro- and nanoscale levels, bridging theory with practical application.

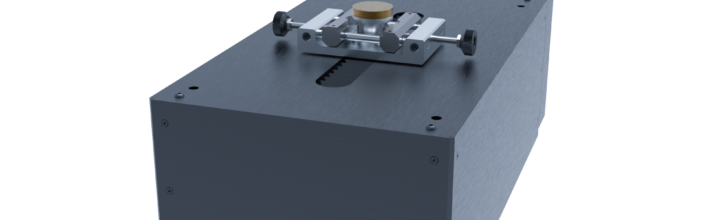

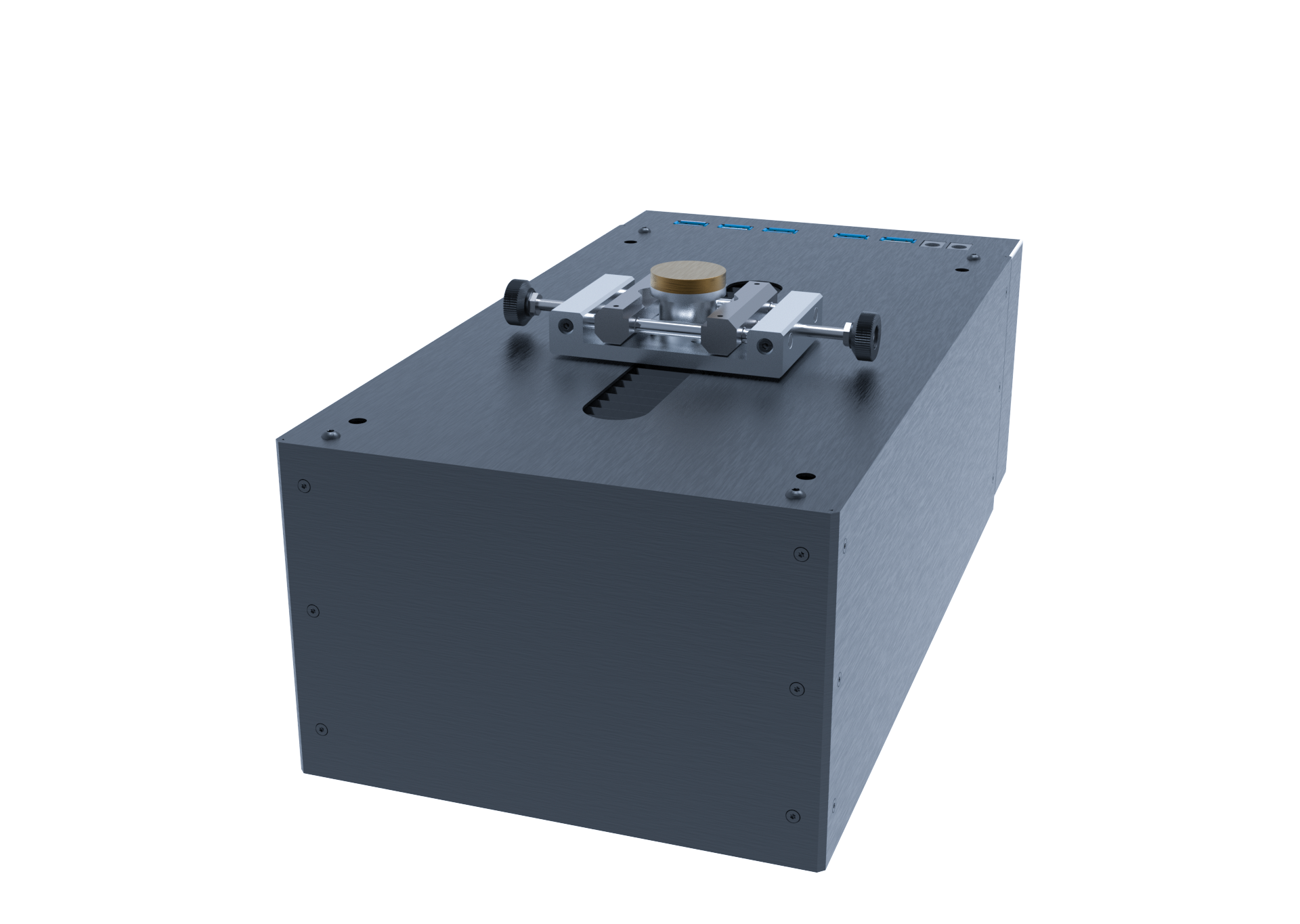

YZ Motorized Stage
Integrated YZ automatic table ensures precise tip calibration and automated measurement lines for consistent results. An optional XYZ table enables advanced mapping and accurate positioning, especially when used with the microscope, providing enhanced surface analysis and efficient navigation for comprehensive and reliable testing workflows.
Optional Optical Microscope
Enhance testing accuracy with advanced sample visualization using an upgradeable optional microscope, allowing clear inspection of surface defects and microstructural features before measurement. Precisely position indentations on targeted areas, ensuring reliable, repeatable results and greater confidence in material characterization.

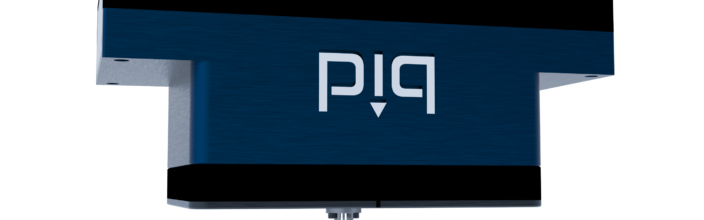

Ultra-Fast Piezoelectric Actuation
A high-performance piezoelectric actuator drives the nanoindentation process with nanometer-scale precision and ultra-fast response time. This advanced actuation technology enables precise force control and dynamic testing capabilities, ensuring highly repeatable measurements across a wide range of materials.

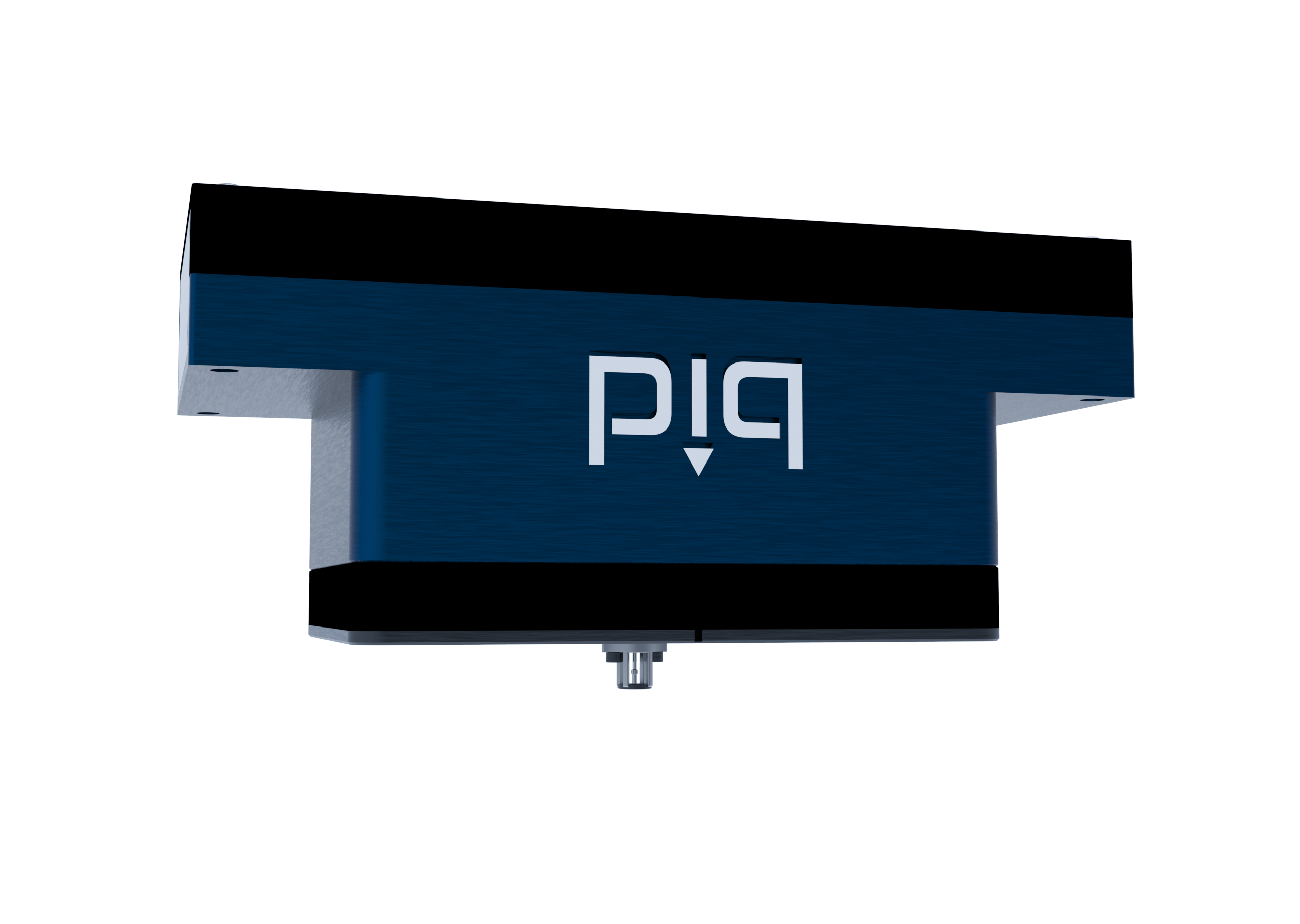

True Force and True Depth Measurement
The PiQ nanoindenter head integrates independent true force and true depth sensors, providing continuous metrological monitoring throughout the entire indentation cycle. This dual-sensor architecture ensures accurate load and displacement measurements, delivering reliable mechanical property data even for thin films, coatings, and micro-scale structures.
More about
SMT-1000教育用ナノインデンターは、学生にナノインデンテーションとナノスケールの機械的特性評価を紹介するために設計されています。
正確な荷重と深さ制御により、硬さと弾性率を測定するための使いやすいプラットフォームを提供します。統合されたセンシング機能により、材料の応答をリアルタイムでモニタリングすることができ、荷重-変位挙動を理解するのに役立ちます。
金属、ポリマー、セラミック、コーティングに適しており、幅広いティーチング・アプリケーションをサポートします。
YテーブルとZテーブルを備えた電動ステージは、チップのキャリブレーション、自動テスト、マッピングを可能にし、オプションの内蔵光学顕微鏡は正確な位置決めを保証する。
シンプルさ、信頼性、科学的妥当性を兼ね備えたSMT-1000は、大学やトレーニングラボに理想的なソリューションです。
| Maximum indentation load | 500 mN |
|---|---|
| Load resolution | 0,015 μN |
| Load noise floor [rms] | 1 μN |
| Maximum indentation depth | 200 μm |
| Depth resolution | 0.005 nm |
| Depth noise floor [rms] | 0.1 nm |
| Data acquisition rate | 1 MHz |
| XYZ Stage | 180 x 15 mm |
| Resonance Frequency | 260 Hz |
| Size | 35 x 35 x 35 cm |
| Weight | 23 kg |
